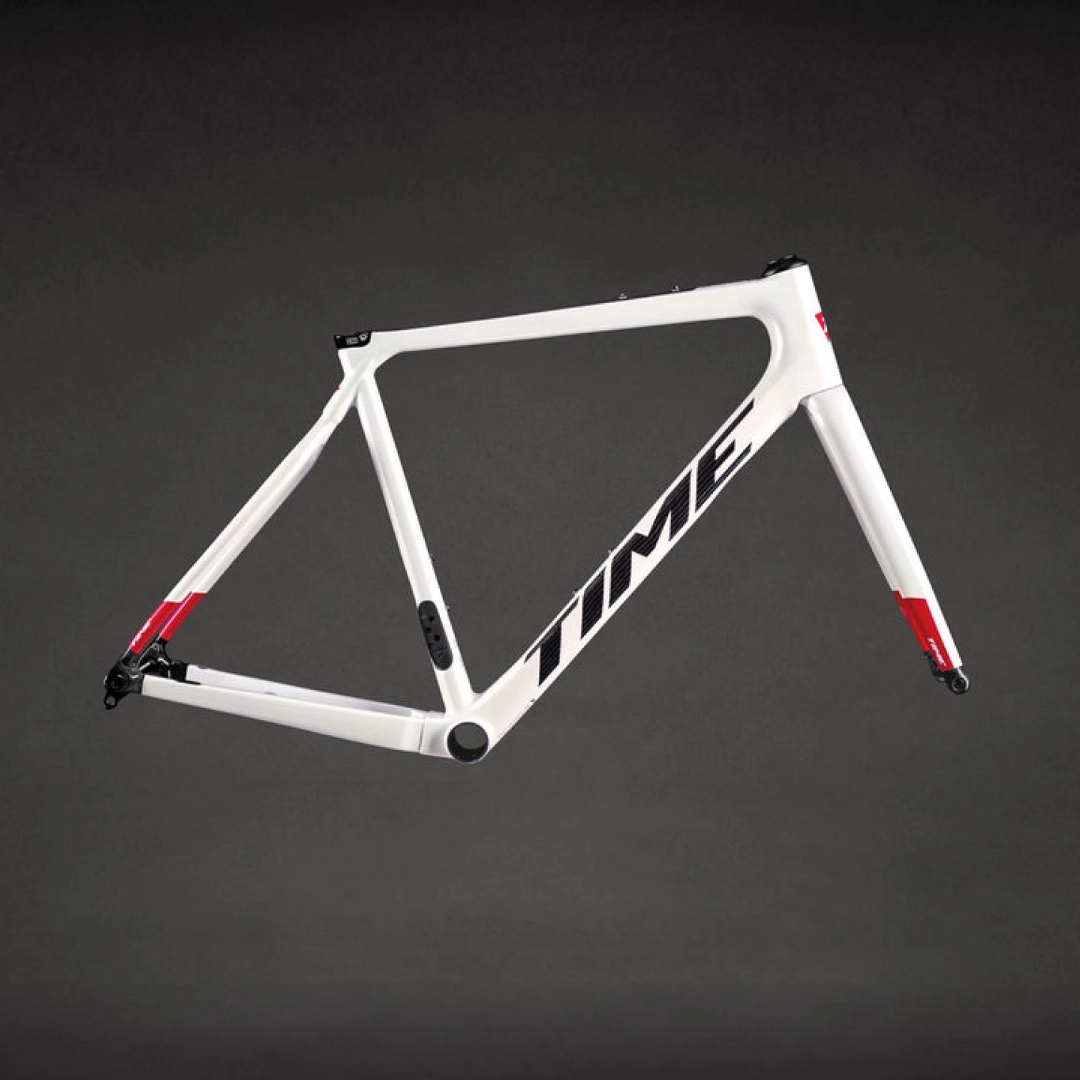

Time ADHX 45 Frameset
Time ADHX 45 Frameset
You Might Be Interested In
Related products
Product Details
Notice: TIME framesets on backorder
Please take note, framesets that are on backorder have a lead time of approximately 14 days from date of order.
We appreciate your patience and understanding.
————————————————————————————————————————————————-
ADHX 45 COULD BE YOUR TIME IF:
- Google Maps can’t figure out where you are most of the time
- What appears to be a vicious sock tan wipes off with a wet washcloth
- You know exactly where that Forest Service road connects, and HIGHLY recommend it
- You don’t own a pump gauge that goes past 60psi
What’s Included
- DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
- Front and Rear Thru Axles
- Alloy Bottle Bolts
- Integrated Seat post Clamp
- (1) Derailleur Hanger
- Single Cover and Drivetrain Conversion Kit
Product Technical Details
| ADHX 45 FRAME SPECIFICATIONS | |
|---|---|
| FRAME MATERIAL BCS Carbon Fiber – Dyneema® Enhanced |
THRU AXLES 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R |
| SIZES XS, S, M, L, XL |
SEATPOST DIAMETER ø27.2mm |
| FORK STEERER TUBE Tapered 1-1/8″ to 1-1/2″ |
SEATPOST CLAMP Proprietary ADHX Alloy |
| HEADSET BEARINGS Top and Bottom 1-1/2″ (with internal routing compression ring) |
SHIFTING Compatible with Electronic and Standard Shifting Systems |
| WHEEL SIZE 700c/650b |
FRONT DERAILLEUR 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit |
MAXIMUM TIRE WIDTH
|
REAR DERAILLEUR Standard Mount |
| BOTTOM BRACKET PF BB386 |
BRAKE TYPE Front and Rear Flat Mount Disc |
| DISC HUB STANDARD 12x100mm F, 12x142mm R |
ROTOR SIZE 140/160mm with Adapter |
